Mobile App Storage

Mobile App Storage is a centralized repository for storing and managing mobile application builds used with Sauce Labs. Once uploaded, applications can be reused for both live and automated testing on both real and virtual devices without requiring additional uploads.

Uploaded applications can also be shared with team members and other teams within your organization and are retained for up to 60 days. Mobile App Storage supports application packages up to 4 GB.

important

If you do not have an application available, you can use one of the Sauce Labs demo applications to familiarize yourself with the live testing workflow:

React Native Demo App

iOS Demo App

Android Demo App

Prerequisites​

Before starting a live mobile app testing session, ensure the following requirements are met:

caution

Upload a debuggable and non-obfuscated version of your application to use features such as Biometrics, Image Injection, and Mobile App Diagnostics.

Supported File Types​

Mobile App Storage supports Android application packages (.apk and .aab) and iOS application packages (.ipa and .zip). For iOS Simulator testing, .zip files must contain a valid .app bundle.

AAB App Signing

When you upload an Android App Bundle (.aab), Sauce Labs extracts the APK required for installation on the test device. Before the application is installed, the extracted APK is signed using a Sauce Labs signing certificate. If your test includes both the main application and a testApp, Sauce Labs signs both applications to ensure they use matching signatures. This signing process is required even when instrumentation is disabled. If the applications are not signed with matching certificates, the installation will fail. For more information about Android App Bundles, see Android App Bundles.

Additional Supported Files​

In addition to mobile application packages, Mobile App Storage can store other files that are used during automated testing workflows, such as scripts, packages, and supporting binaries.

Supported file types include:

  • .js
  • .py
  • .tar
  • .zip
  • .sh
  • .bat
note

Only valid .zip archives that can be extracted using standard unzip tools are supported. Executable (.exe) files are not supported.

Uploading Apps​

You can upload your mobile application to Mobile App Storage using either the Sauce Labs UI or the File Storage API. Once uploaded, the application becomes available for live testing and automated testing.

Upload Apps via UI​

Use the Sauce Labs UI to manually upload an application to Mobile App Storage.

Step 1: In your Sauce Labs account, navigate to App Management from the left navigation menu. The Mobile App Storage page opens, where you can upload and manage your application builds.

Mobile App Storage

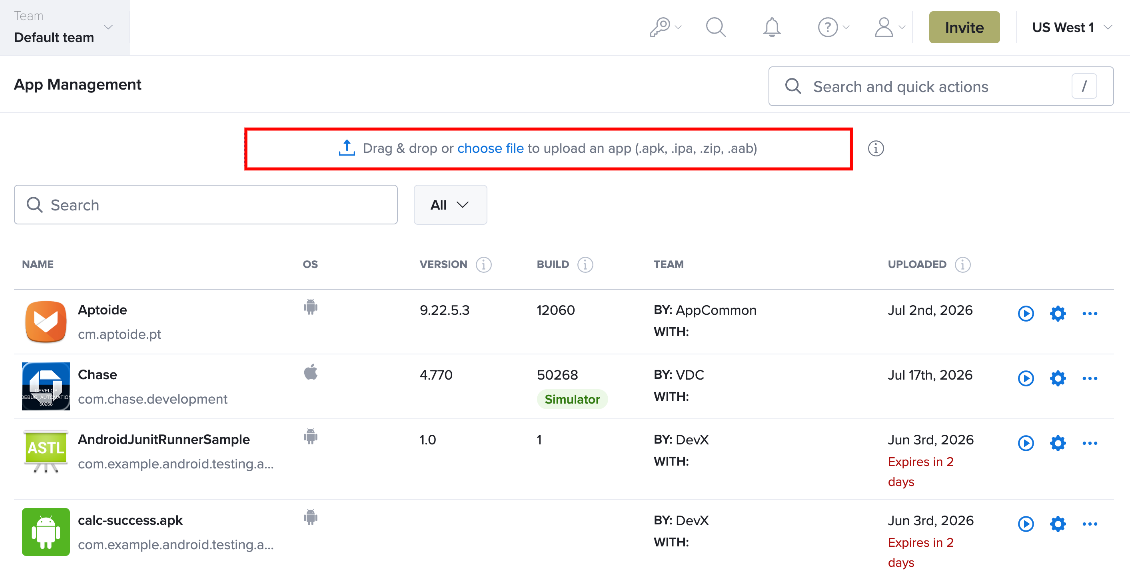

Step 2: On the App Management page, upload your application using one of the following methods:

  • Drag and drop your application file into the upload area.

  • Click the upload area, browse to the application file on your local machine, and then select it.

Mobile App Storage

Step 3: Wait for the upload to complete. After the upload finishes, the application is added to Mobile App Storage and appears on the App Management page.

Mobile App Storage

Verify that the application is listed in App Management. You can now use the uploaded application for live testing and automated testing, configure app settings, or manage additional app builds.

tip

If you do not have an application available for testing, upload one of the Sauce Labs Demo Apps to explore the testing workflow and familiarize yourself with Mobile App Storage.

Upload Apps via REST API​

You can upload applications programmatically using the File Storage API. This method supports CI/CD pipelines and automated workflows.

Before uploading an application, make sure you are using the File Storage API endpoint for your Sauce Labs data center (US West, US East, or Europe).

Before You Begin

When using the sample cURL commands, note the following:

  • Replace <path/to/your/file> with the complete path to your application, including the filename and extension.

  • Replace <filename.ext> with the application filename, including its extension. If the filename is omitted, the upload succeeds, but the application cannot be referenced during testing.

  • Make sure the SAUCE_USERNAME and SAUCE_ACCESS_KEY environment variables are configured with your Sauce Labs credentials.

note

Replace the endpoint URL with the appropriate File Storage API endpoint if your account is hosted in the US East or Europe data center.

Sample Request
curl -u "$SAUCE_USERNAME:$SAUCE_ACCESS_KEY" --location \
--request POST 'https://api.us-west-1.saucelabs.com/v1/storage/upload' \
--form 'payload=@"<path/to/your/file>"' \
--form 'name="<filename.ext>"'

App Build Tags​

App build tags help organize and identify application builds stored in Mobile App Storage. You can assign up to 10 tags to an app build during upload or after the upload using the File Storage API.

Tags can be used to categorize builds by release, environment, feature, testing phase, or any other naming convention used by your team. You can then use these tags to locate and manage specific app builds.

Sample Request - Upload with tags
curl -u "$SAUCE_USERNAME:$SAUCE_ACCESS_KEY" --location \
--request POST 'https://api.us-west-1.saucelabs.com/v1/storage/upload' \
--form 'payload=@"<path/to/your/file>"' \
--form 'name="<filename.ext>"' \
--form 'tags="Europe,Asia,US"'

Rate Limits​

To maintain service stability and ensure consistent upload performance, Mobile App Storage enforces rate limits on application uploads. These limits control the number of upload requests that can be processed in a given time period and the maximum number of concurrent uploads allowed for each account type.

The following upload limits apply:

Account TypeUpload LimitParallel Upload Limit
Trial Users5 uploads per 15-minute window2 concurrent uploads
Non-Trial Users100 uploads per 15-minute window15 concurrent uploads

If the upload limit is exceeded, additional upload requests are temporarily rejected until the current rate limit window resets. To avoid upload failures, wait for the time window to expire before submitting additional upload requests.

Access Restrictions​

Access to applications stored in Mobile App Storage is managed at the team level. By default, uploaded applications are available only to members of the team that uploaded them.

Team Access​

All uploaded applications are shared with members of the active team. Team members can view and use applications uploaded by other members of the same team.

Organization administrators have access to applications across all teams in the organization and can manage app groups shared between teams.

For more information about managing users and team access, see Managing User Information.

Mobile App Storage

Share an App Group with Another Team​

Organization administrators can share an app group with one or more teams in the same organization. Shared app groups allow team members to use the application for testing without requiring another upload.

When an app group is shared:

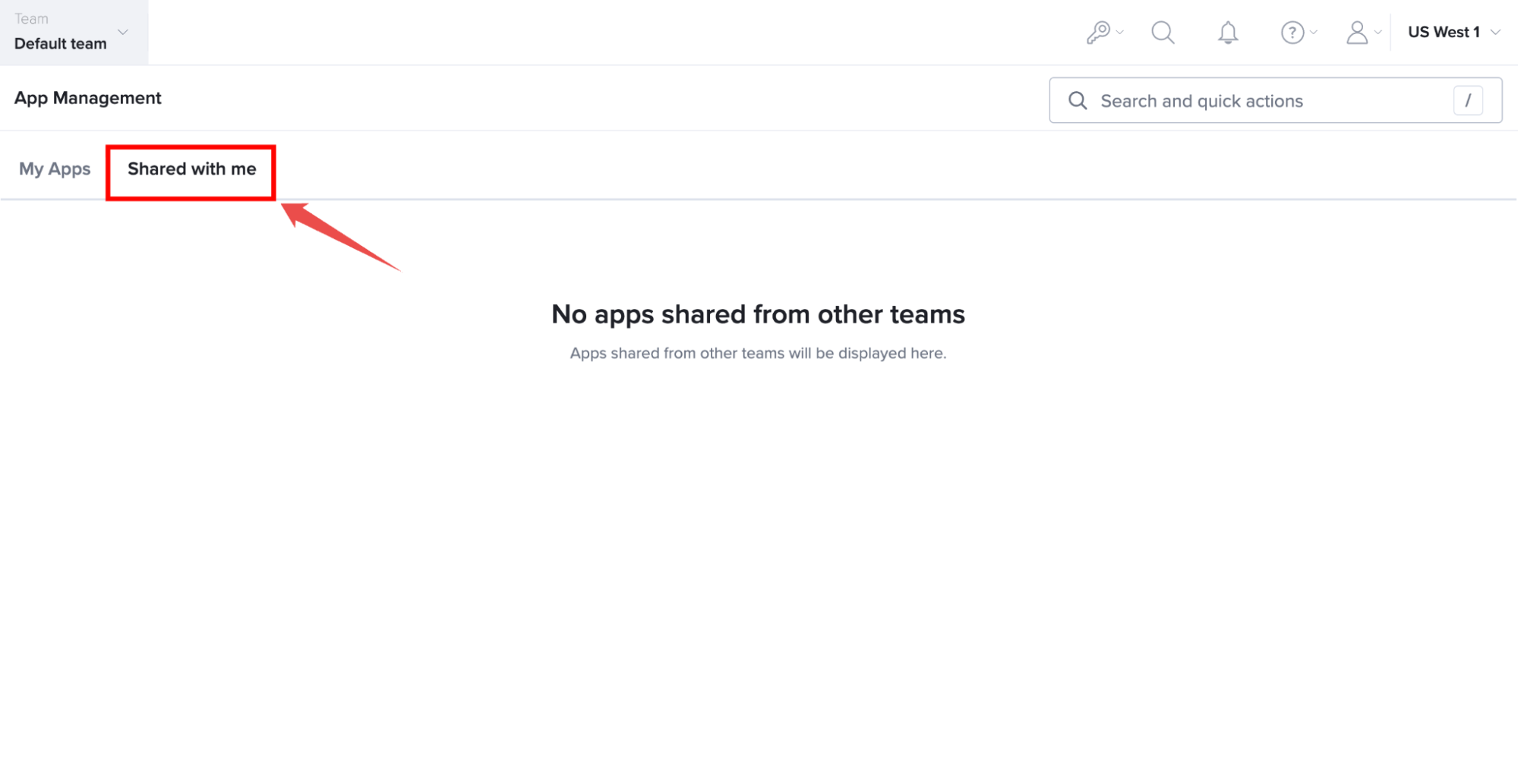

  • The shared app group appears under the Shared With Me tab on the App Management page for the receiving team.

  • Team members can use the shared application for testing just like applications uploaded by their own team.

  • Only organization administrators can modify or remove app sharing.

  • Teams receiving a shared app group cannot delete it.

Mobile App Storage

Share an App Group​

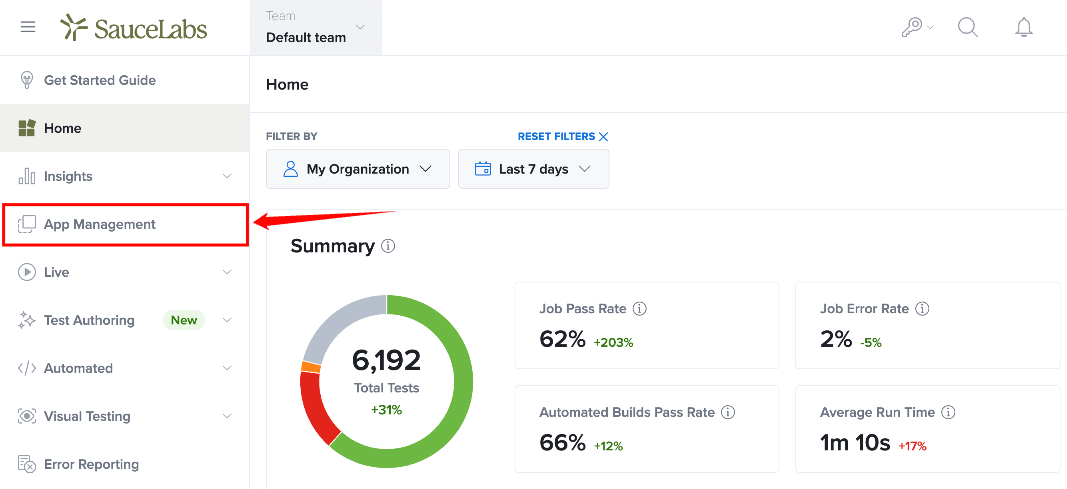

Step 1: Sign in to your Sauce Labs account, then click App Management from the left navigation menu to open the page that lists all available app groups.

Mobile App Storage

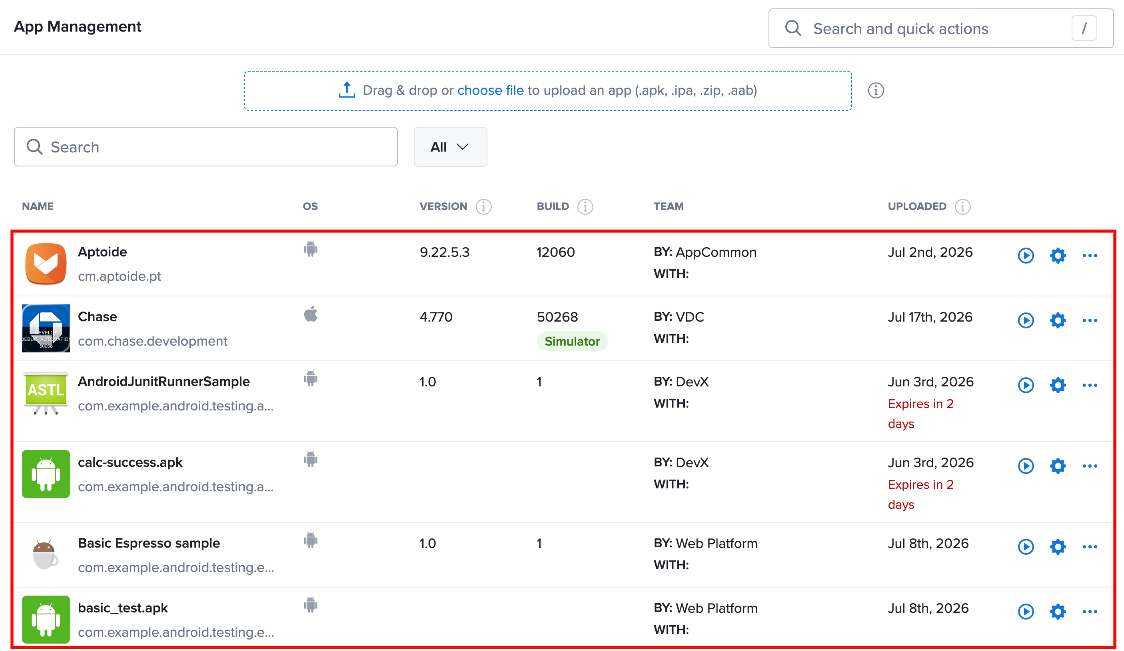

Step 2: Locate the app group that you want to share with another team.

Mobile App Storage

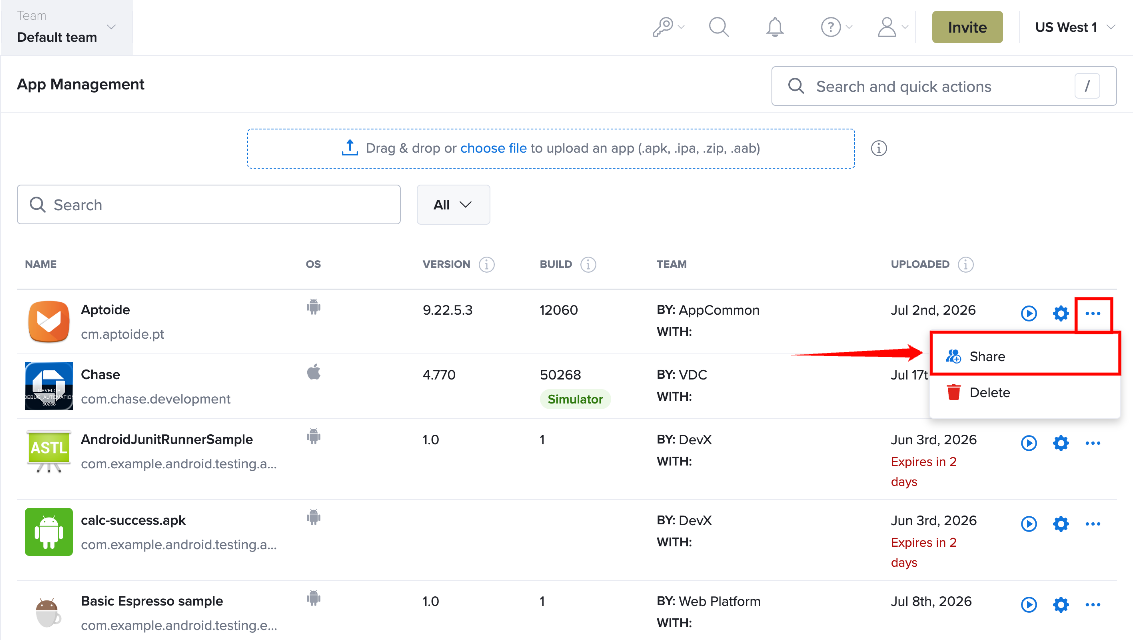

Step 3: In the app group row, click More Actions (⋮), and then select Share. The Share dialog opens.

Mobile App Storage

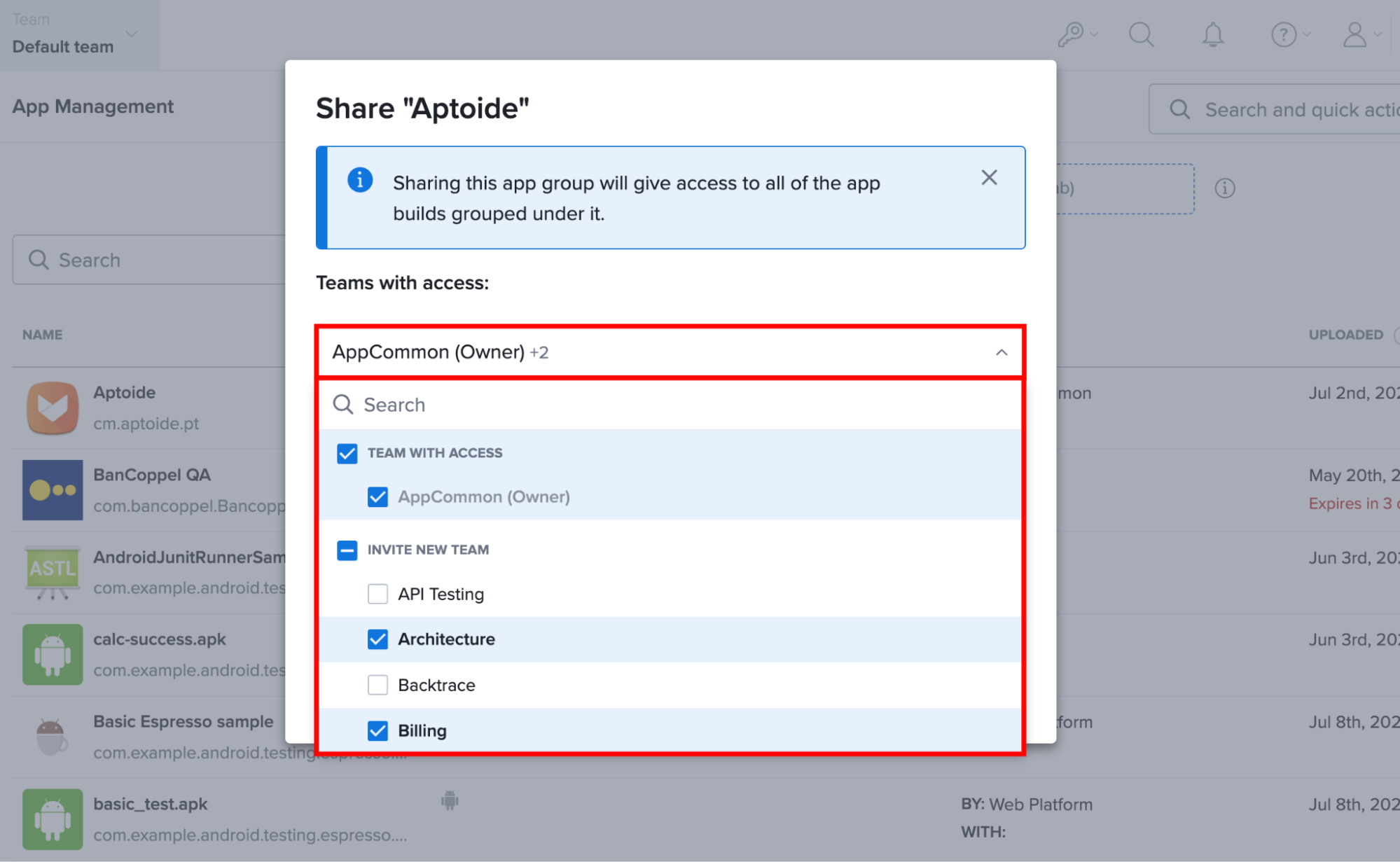

Step 4: In the Share dialog, open the Teams dropdown list and select one or more teams that should have access to the app group.

Mobile App Storage

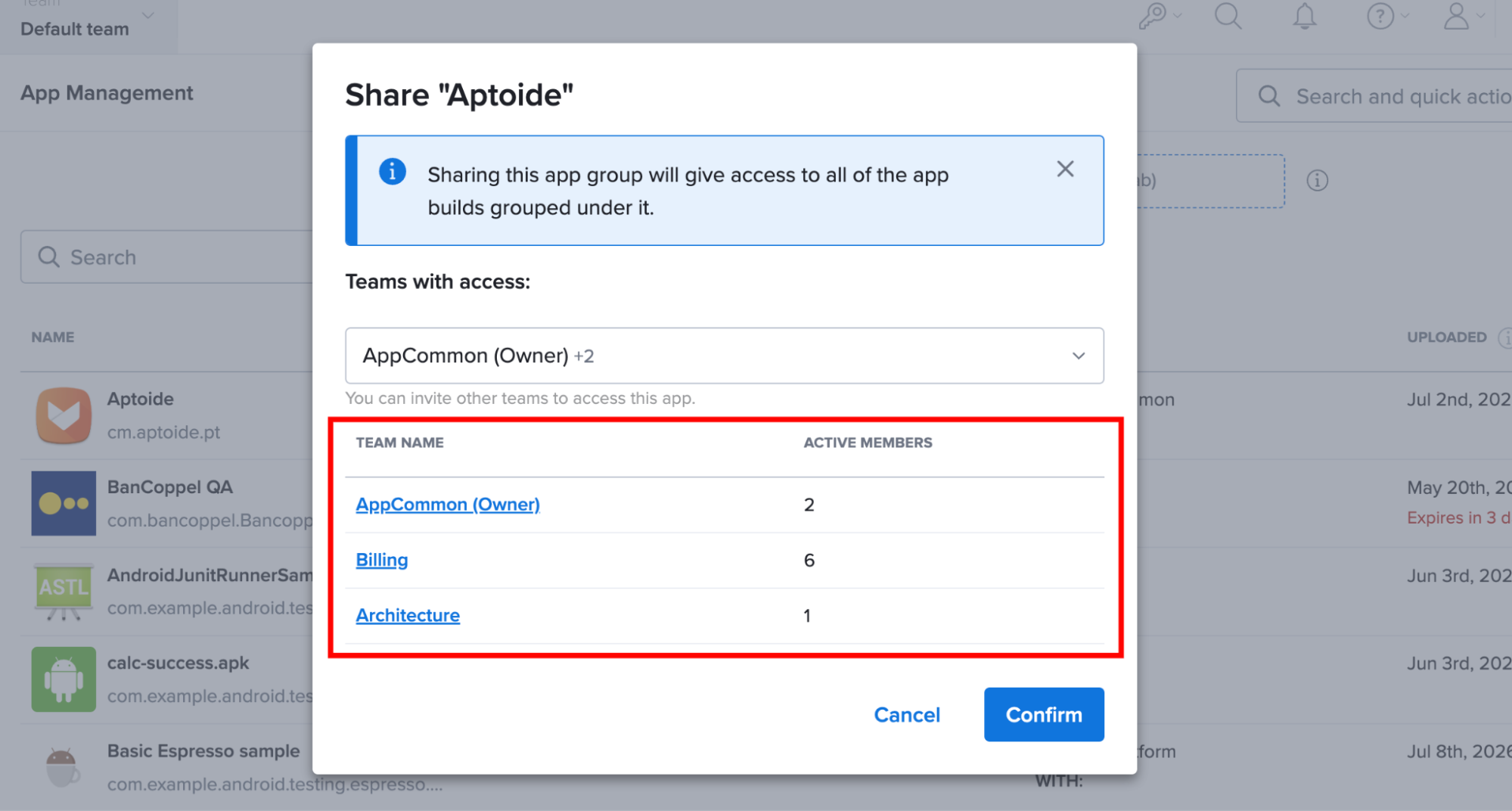

Review the selected teams before continuing. Any new selection replaces the existing list of teams that the app group is shared with.

Mobile App Storage

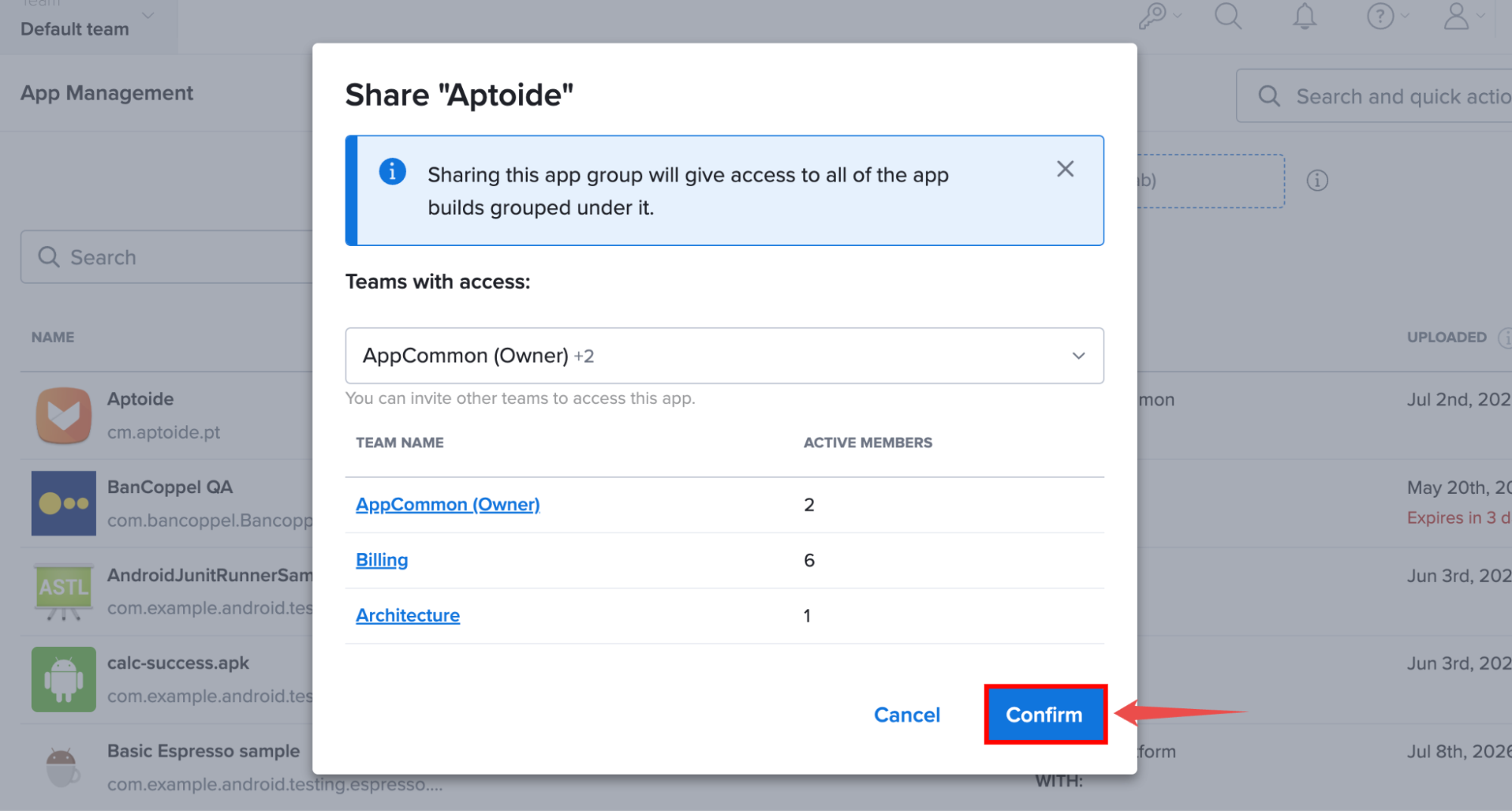

Step 6: Click Confirm to save your changes. The selected teams can now access the shared app group from the Shared With Me tab on the App Management page.

Mobile App Storage

After the changes are saved, the selected teams can access the shared app group from the Shared With Me tab on the App Management page.

App Management​

After uploading an application to Mobile App Storage, you can manage its builds, configure default settings, distribute application builds, and access additional management options from the App Management page.

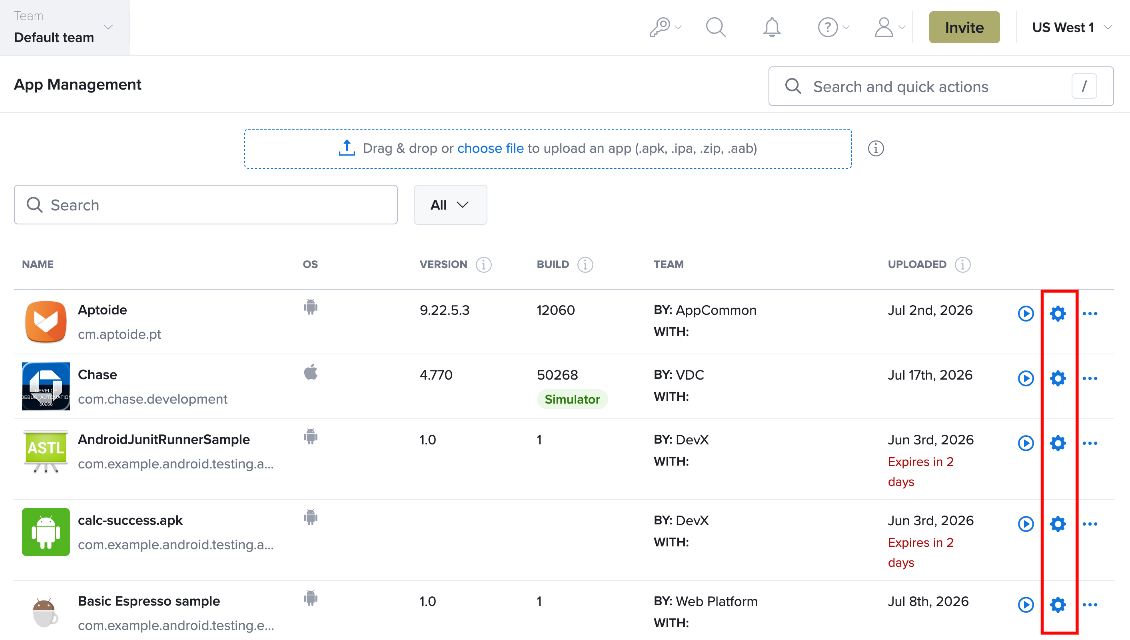

Locate the app group that you want to manage, then hover over it and click Settings & App Versions to open the application management page.

Mobile App Storage

The version number shown is the most recently uploaded file, not necessarily the latest version of the app. Deleting an app in Sauce Labs will delete the whole app group (i.e., the group of builds belonging to the same app package).

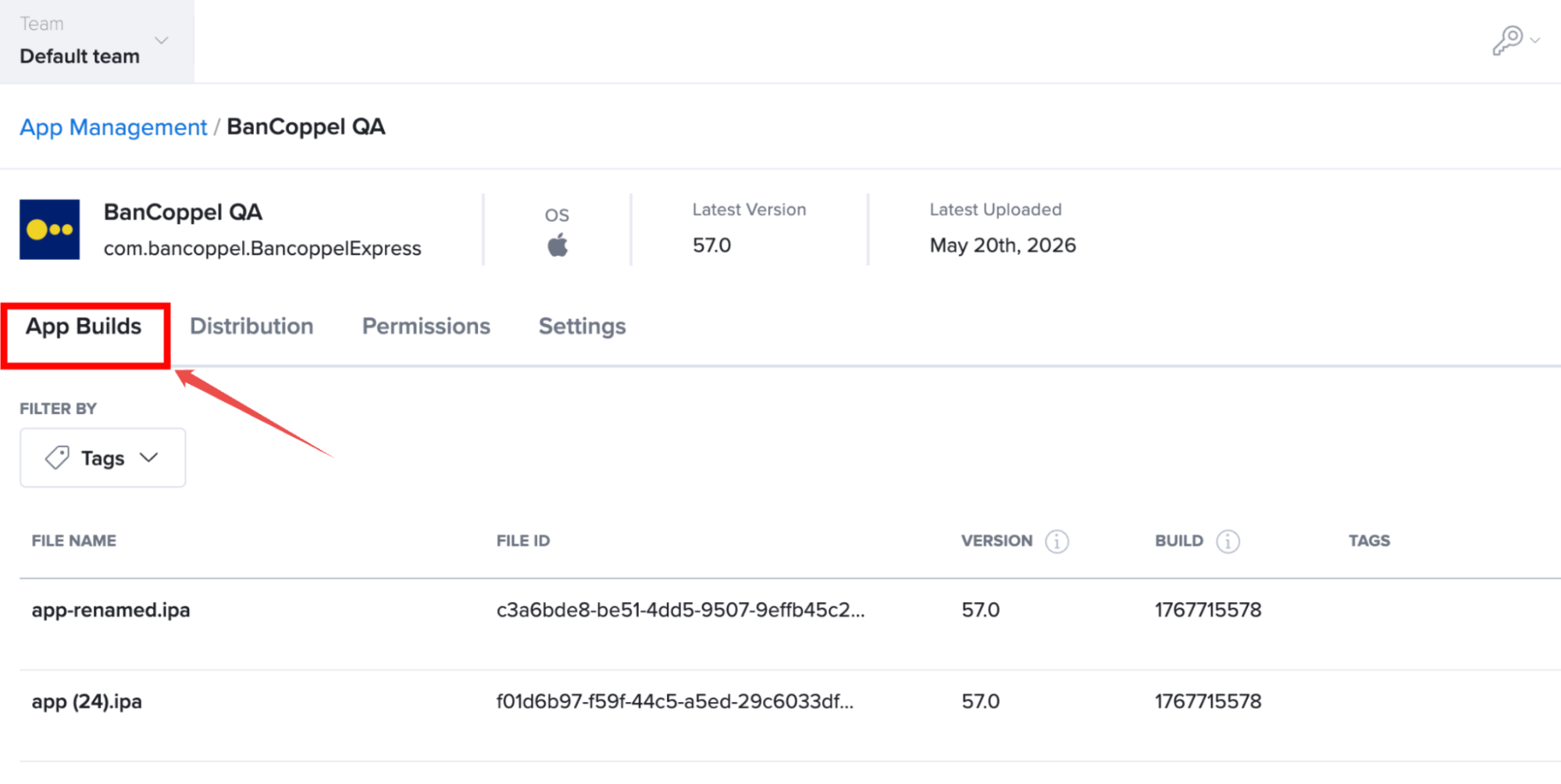

App Builds​

The App Builds tab displays all builds that belong to the selected app group. From the App Builds tab, you can view uploaded application builds, access build details, start a test, download a build, or copy the application's File ID or filename for use in automated tests.

To copy a File ID or filename, hover over the value and click the Copy icon.

note

Only Organization Admins and Team Admins can delete an app build.

Mobile App Storage

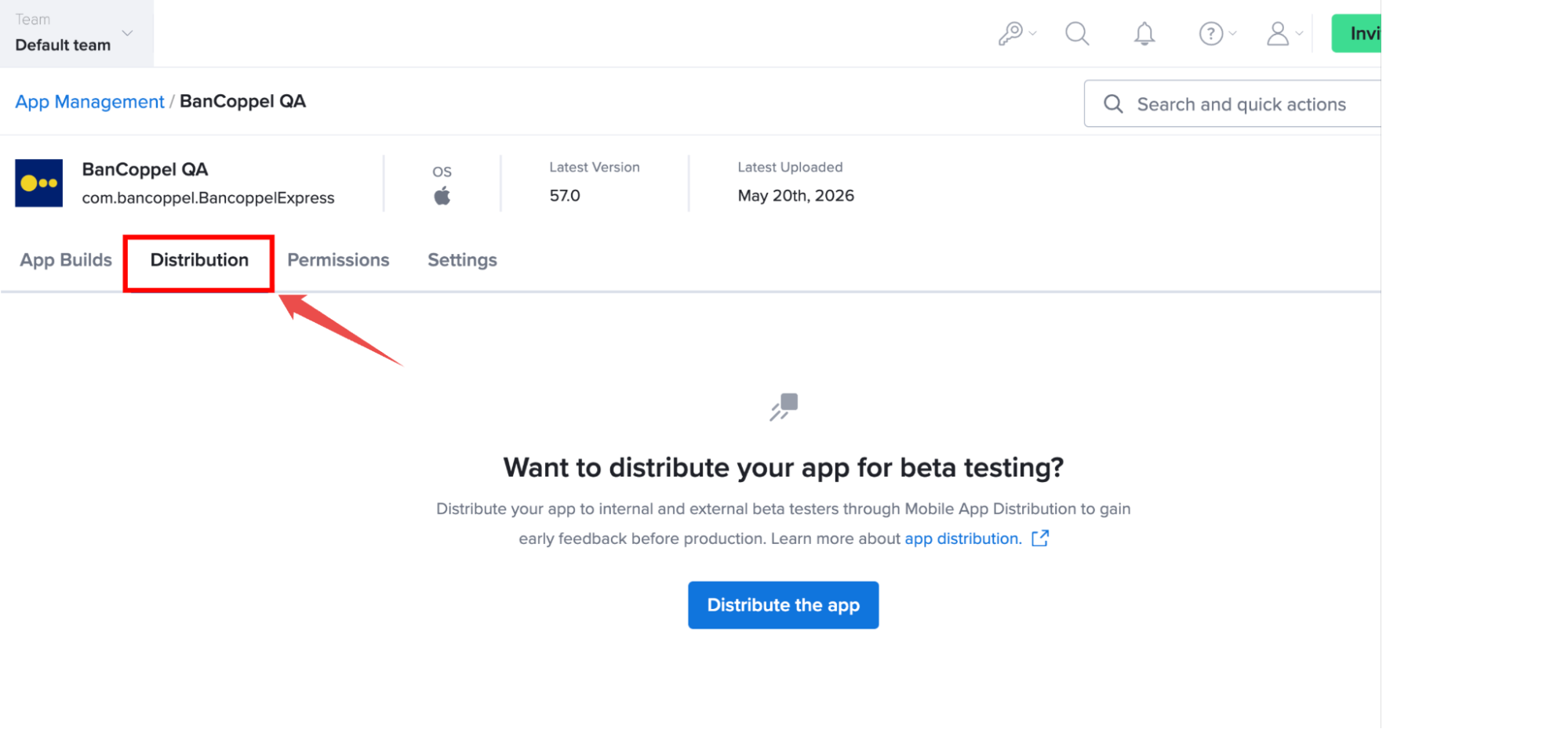

Distribution​

The Distribution tab allows you to distribute application builds to internal and external beta testers using Sauce Labs Mobile App Distribution. This enables testers to install and evaluate application builds before they are released to production, helping teams validate functionality and gather feedback during the testing phase.

For more information, see Mobile App Distribution.

Mobile App Storage

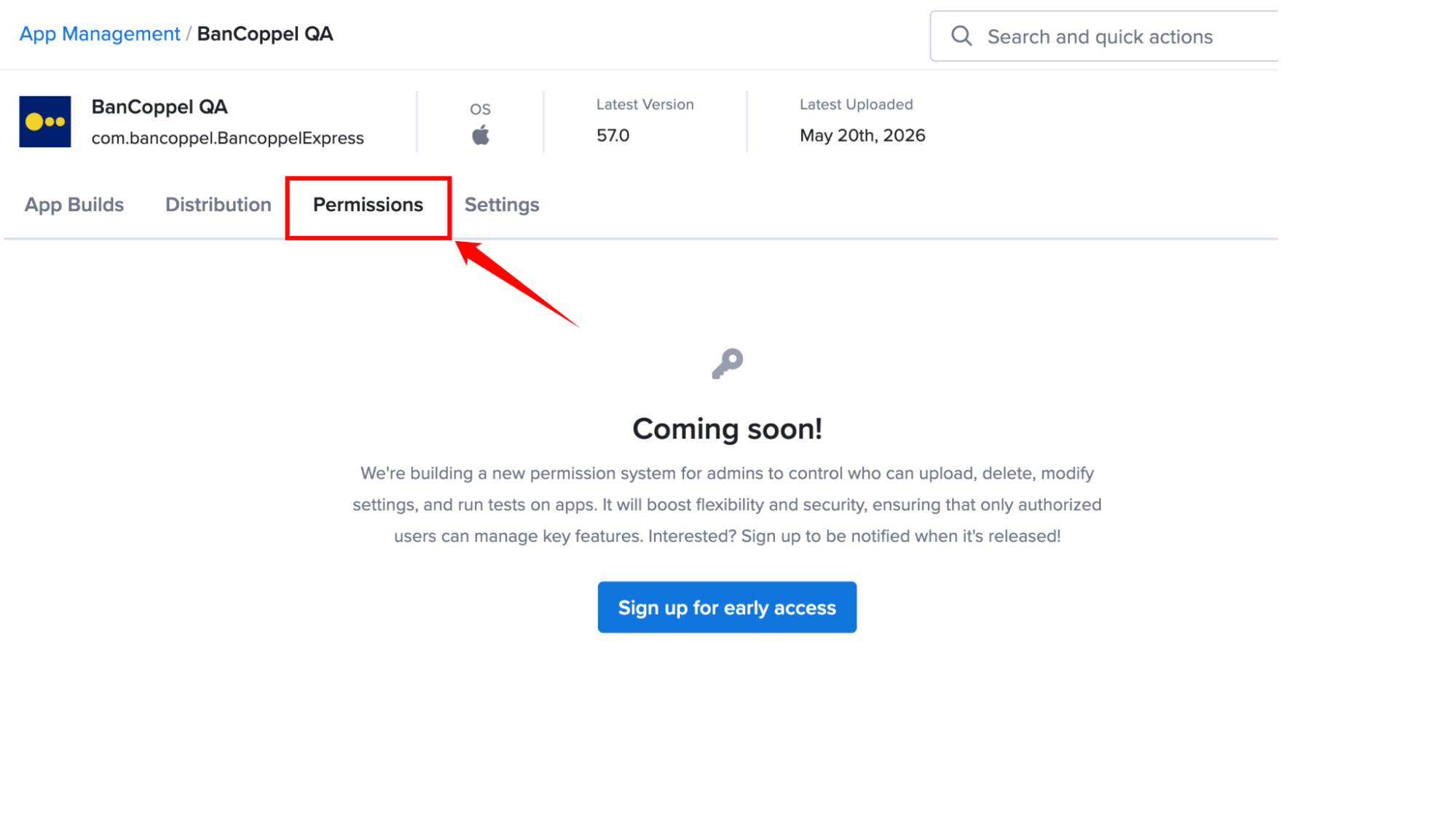

Permissions​

Coming soon

Sauce Labs is developing a new permission model for Mobile App Storage that will provide administrators with greater control over application management. The new permission system will allow administrators to define which users can upload application builds, delete applications and app builds, modify application settings, and run tests using uploaded applications.

Mobile App Storage

Settings​

The Settings tab allows you to configure the default device and application settings for an app group. These settings are automatically applied whenever the application is used for live testing or automated testing on real devices, eliminating the need to configure the same settings for each test session.

Only Organization Admins and Team Admins can modify these settings.

For more information about managing your device and app settings, see Real Device Settings.

Mobile App Storage

Using App Storage with Automated Test Builds​

After successfully uploading your file to app storage, you need to reference the unique app Identifier (file_id) in your test code to retrieve and use your app for automated tests.

For example, let's assume you've updated a new version of your app using the /upload endpoint. The JSON response would be something like:

{
   "item":{
      "id":"379c301a-199c-4b40-ad45-4a95e5f30a3a",
      "owner":{
         "id":"286c0fbb0cb644c4a012d505b8a0a1ac",
         "org_id":"c064890612424e34a12fca98ce4f32c6"
      },
      "name":"Android.SauceLabs.Mobile.Sample.app.2.3.0.apk",
      "upload_timestamp":1593450387,
      "etag":"0cf189b1c4c17a56656ada5e2d75cd51",
      "kind":"android",
      "group_id":2807,
      "metadata":{
         "identifier":"com.swaglabsmobileapp",
         "name":"Swag Labs Mobile App",
         "version":"2.3.0",
         "icon":"<long-serial-number>",
         "version_code":13,
         "min_sdk":16,
         "target_sdk":28
      },
      ...
      }
   }
}

Then the file_id would be "id":"379c301a-199c-4b40-ad45-4a95e5f30a3a". If you're unsure of the id of an existing app, you can use the Storage API to look up the file id of an app in the storage or check out the App Builds in the UI.

File Name instead of File ID​

You can also use the app name field from the storage API in the app capability. This approach is particularly useful if you upload your build to app storage via a CI pipeline, and you either don't know the id, or you do not wish to perform JSON parsing to retrieve the id. The filename field also includes any supported file that can be uploaded to app storage.

Example of uploading an Android .apk file:

caps.setCapability("app", "storage:filename=<file-name>.apk");

Limitations​

  • File names are NOT unique, therefore they will always default to the latest version.
  • Currently, you cannot specify the version of the app using this feature.
  • build capability is not supported in VDC at this time.

Example Code​

These examples assume file_id = c8511dd6-38ec-4f58-b8b9-4ec8c23ad882

Before:
caps.setCapability("app", "sauce-storage:some-app.apk");
After:
caps.setCapability("app", "storage:c8511dd6-38ec-4f58-b8b9-4ec8c23ad882");

Using Dependent Apps for a Test​

Real Devices Only

If your real device testing requires your app under test to have access to other apps and you, therefore, need to install those dependent apps and reference them in your tests, you can do so using the otherApps capability.

note

Dependent apps inherit the configuration of the main app under test for Device Language, Device Orientation, and Proxy, regardless of what settings may have been applied to the app at the time of upload, because the settings are specific to the device under test. For example, if the dependent app is intended to run in landscape orientation, but the main app is set to portrait, the dependent app will run in portrait for the test, which may have unintended consequences.

Appium Capability​

For Appium tests, you can specify up to seven apps that have already been uploaded to App Storage using one of the previously described methods by setting the otherApps desired capability and referencing the app's storage ID or filename.

caps.setCapability("otherApps", "storage:filename=<file-name>")
caps.setCapability("otherApps", "storage:<fileId>")
note
  • Android dependent apps will not be instrumented or modified.
  • iOS dependent apps will always be resigned/modified (even when resigning is disabled for the main app) because apps can't be installed on iOS devices without resigning them. If a dependent app cannot be resigned (such as a 3rd party app), the test will not work as intended.

Espresso/XCUITest Configuration​

For Espresso or XCUITest testing, you can specify up to seven dependent apps to either upload from your local machine or that are already in App Storage. In your saucectl configuration file, specify a local filepath (relative location is {project-root}/apps/app1.apk) or an expanded environment variable representing the path, and saucectl will upload the app to App Storage for use with the test. Otherwise, specify an app in App Storage using the reference storage:<fileId> or storage:filename=<filename>.

espresso:
otherApps:
- ./apps/pre-installed-app1.apk
- $PRE_INSTALLED_APP2
- storage:c78ec45e-ea3e-ac6a-b094-00364171addb
- storage:filename=pre-installed-app3.apk

Installing Apps from a Remote Location​

Real Devices Only

If your app is downloadable from a remote location (for example, AWS S3 bucket, a GitHub repository), you can provide a URL as the value for the app capability in your test, which will install the app onto the real devices prior to test execution.

note

Appium cannot log in to secure locations, so apps installed via remote download must be accessible, so are then removed from the real device immediately following test completion, providing an added layer of security.

To install a remote app on a real device for a test:

  1. Make sure the app meets the requirements for Android and iOS Mobile App Testing.
  2. Ensure Sauce Labs has READ access to the app URL.
  3. In your Appium test script, enter the app file location URL as the app desired capability:
Example Java Remote App URL Capability
caps.setCapability("app", "https://github.com/saucelabs/sample-app-mobile/releases/download/2.3.0/Android.SauceLabs.Mobile.Sample.app.2.3.0.apk?raw=true");
LIMITATIONS

Android:

  • The Instrumentation feature will not work if the app is installed from an external location.

iOS:

  • The app cannot be installed on public devices due to signing.
  • The app can be installed on private devices. However, to make this work you must add the UDID of the private device to the provisioning profile for iOS (see our resigning process to learn more).
  • The Instrumentation feature will not work if the app is installed from external location.

Deprecated Sauce-Storage​

If you were previously using apps stored in sauce-storage, you can convert your existing test capabilities by replacing sauce-storage:myapp with storage:<file_id>.
